iDeck iD.M-iD.D Electric Oven
Set your ceiling to 390, your floor to 330, and walk away - the thermocouples hold it there. The Moretti Forni iDeck iD.M and iD.D bring electronic precision to the most accessible deck oven platform in the range. Dual-Temp Technology monitors ceiling and floor temperatures independently in real time; Dual-Power Technology manages energy distribution between zones. iD-M models have one deck; iD-D models stack two for double the output.
Features
|
Dual-Temp Technology Two independent thermocouples inside the chamber monitor ceiling and floor temperatures separately, adjusting each zone instantly. No drift, no guesswork. |
|
|
Dual-Power Technology Electronic power management distributes energy independently between ceiling and floor heating zones. Fine-tune the balance for leavened products, flatbreads, or gastronomy trays. |
|
|

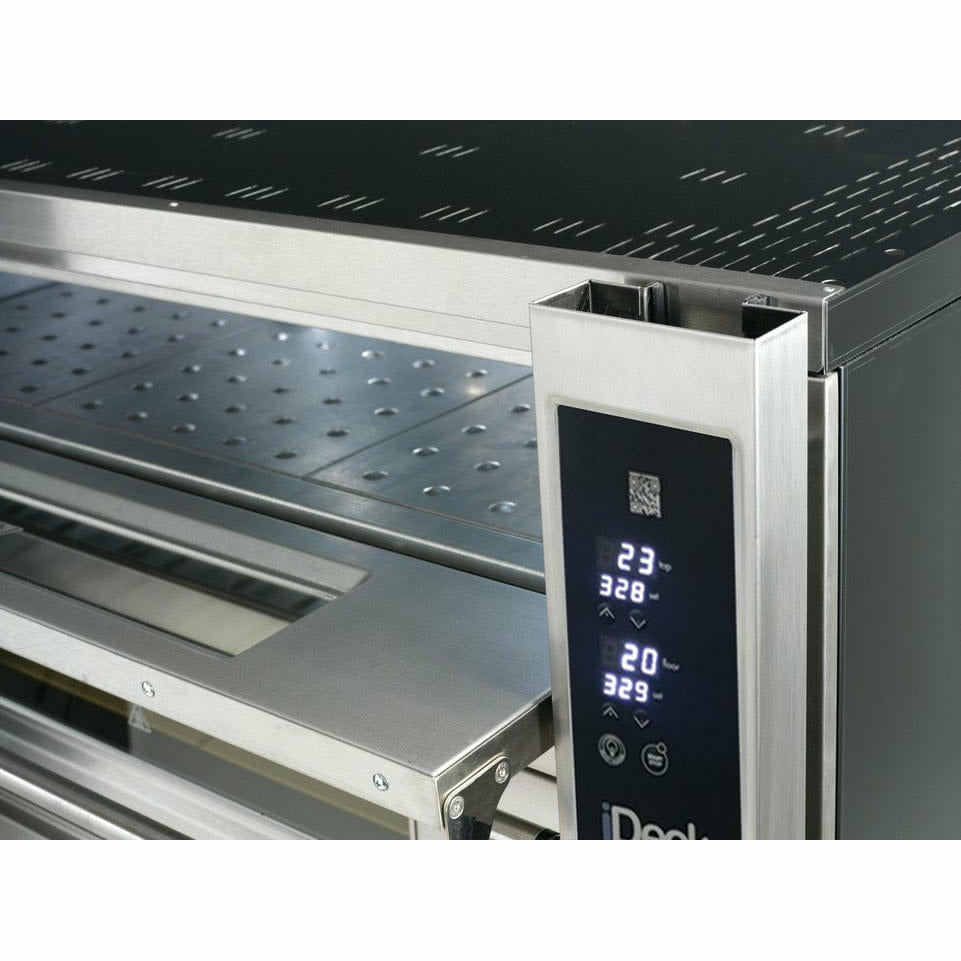

Repeatable Digital Settings Digital control panel lets you set exact ceiling and floor temperatures. Consistent results across operators and shifts without relying on experience reading analog dials. |
|
|
450 C Refractory Stone Deck Refractory brick baking surface holds and distributes heat evenly up to 450 C (840 F). Bake pizza directly on the stone or use sheet pans for gastronomy. |
|
|

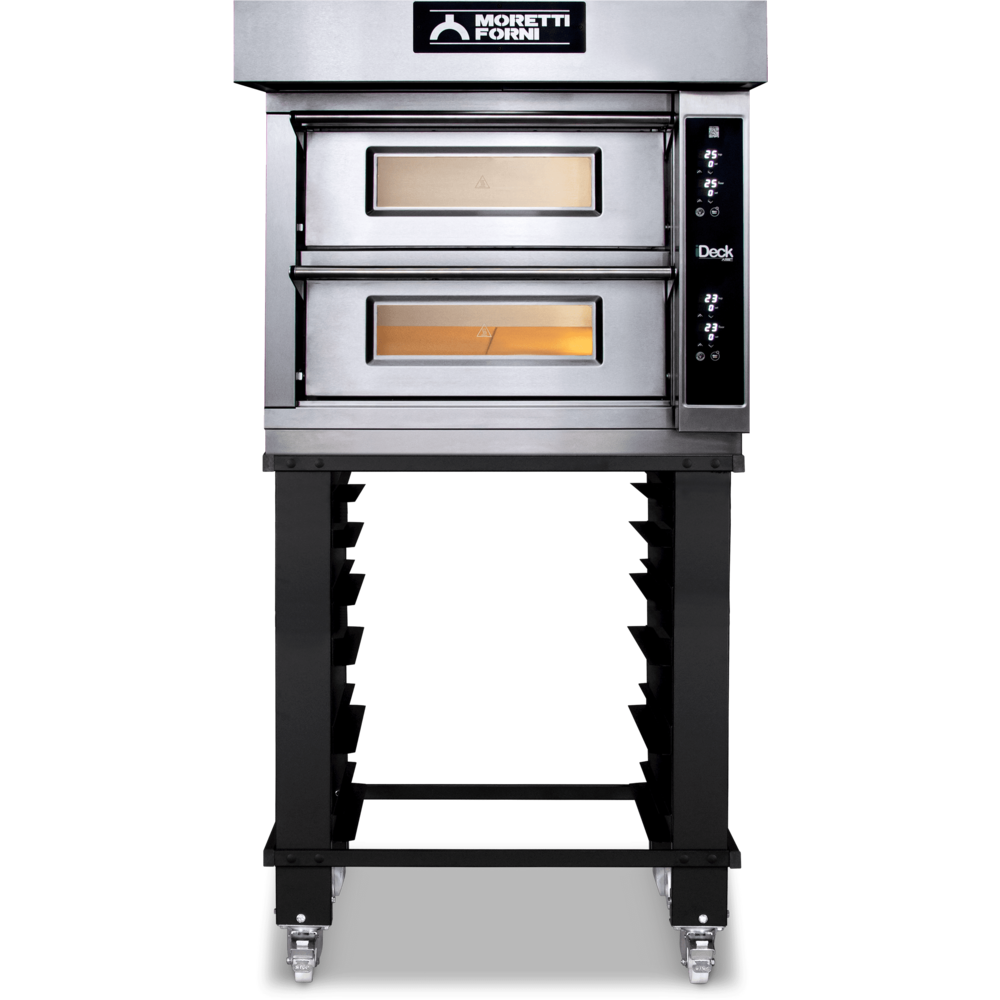

4 to 9 Pizzas Per Deck Five chamber sizes from 60x60 cm to 105x105 cm. Double the output with an iD-D (two-deck) model in the same footprint. |
|
|

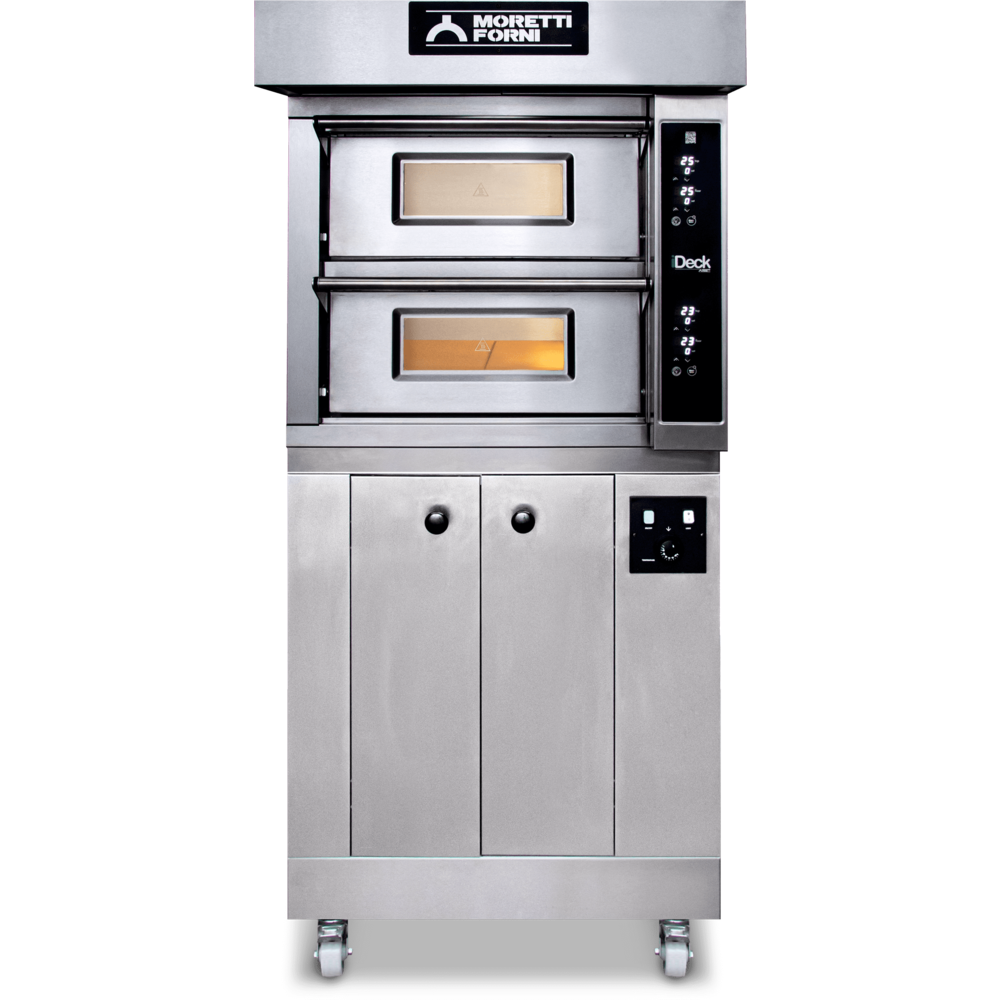

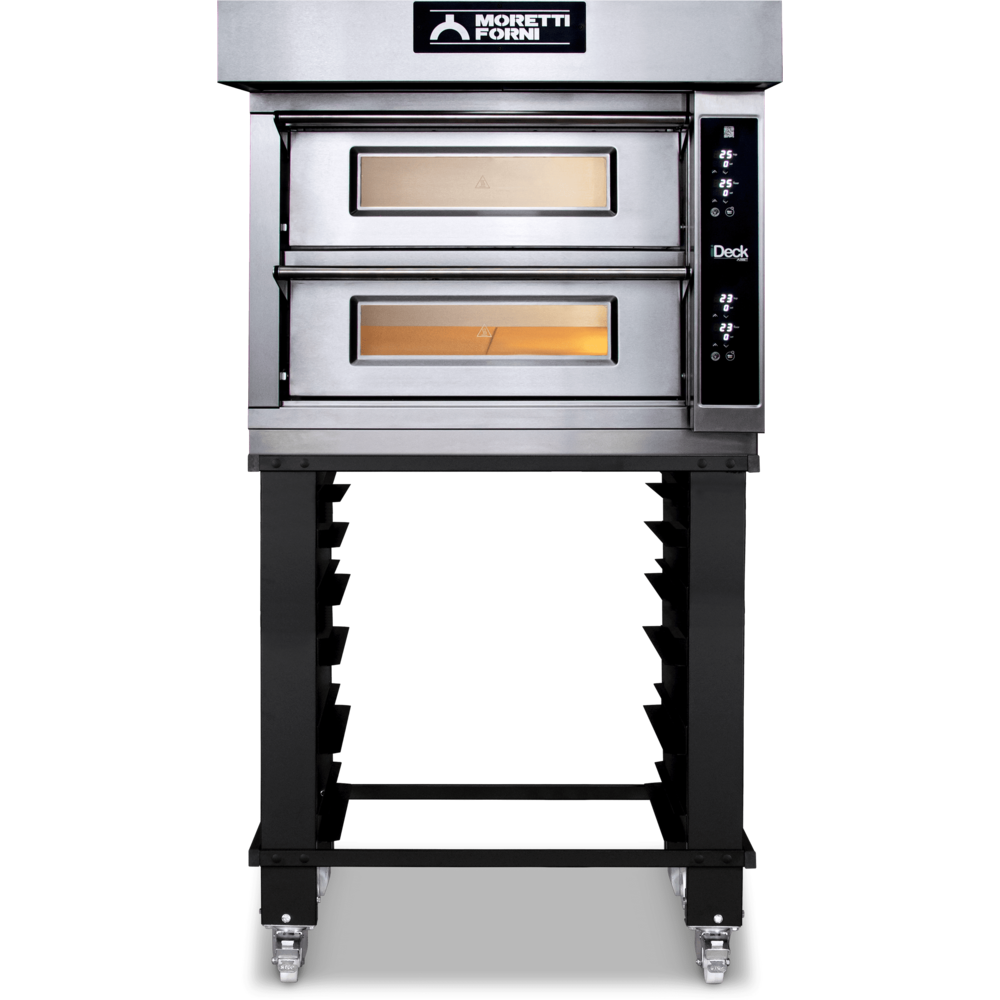

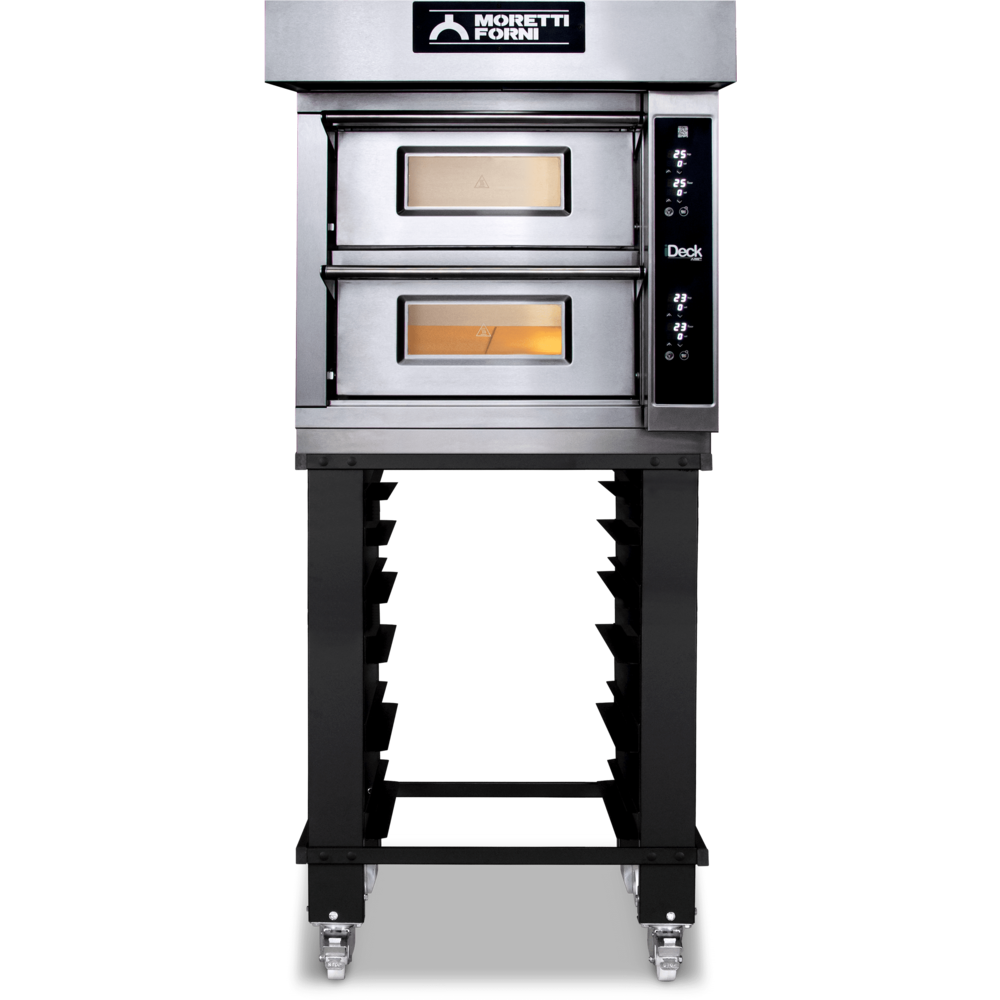

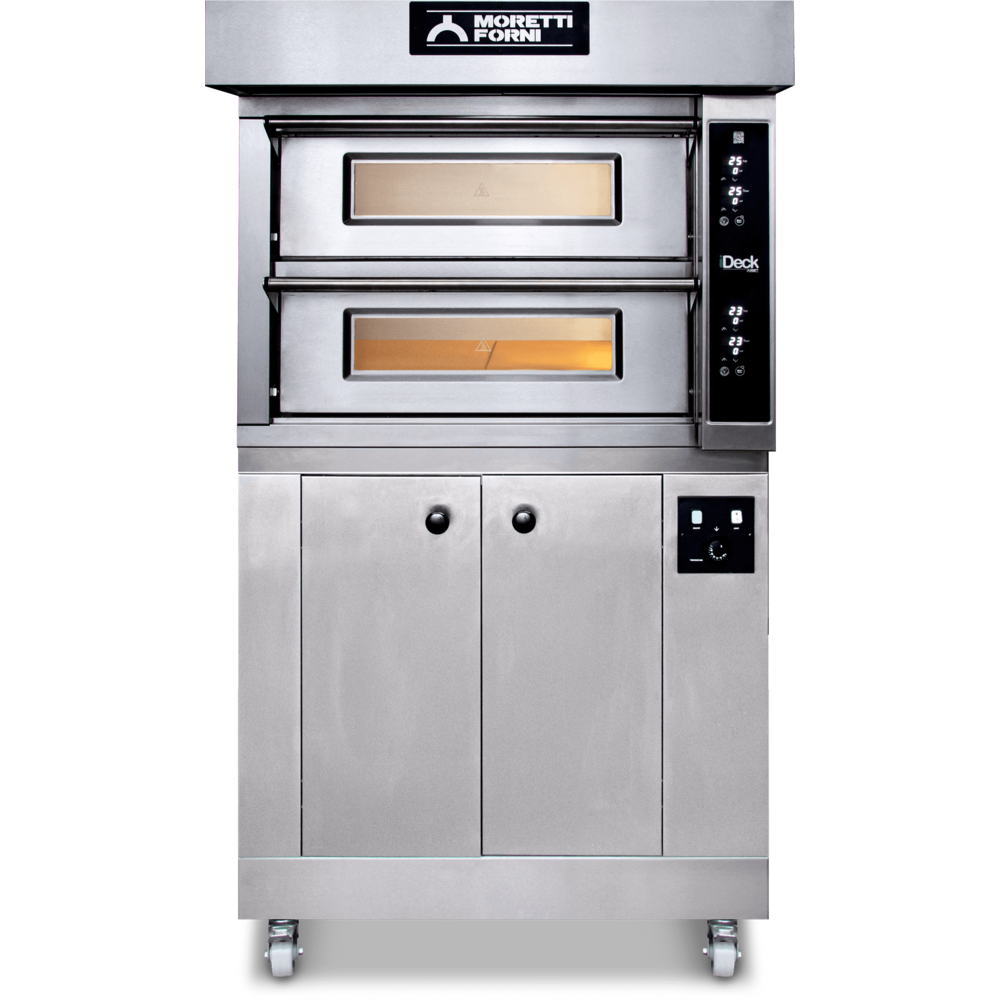

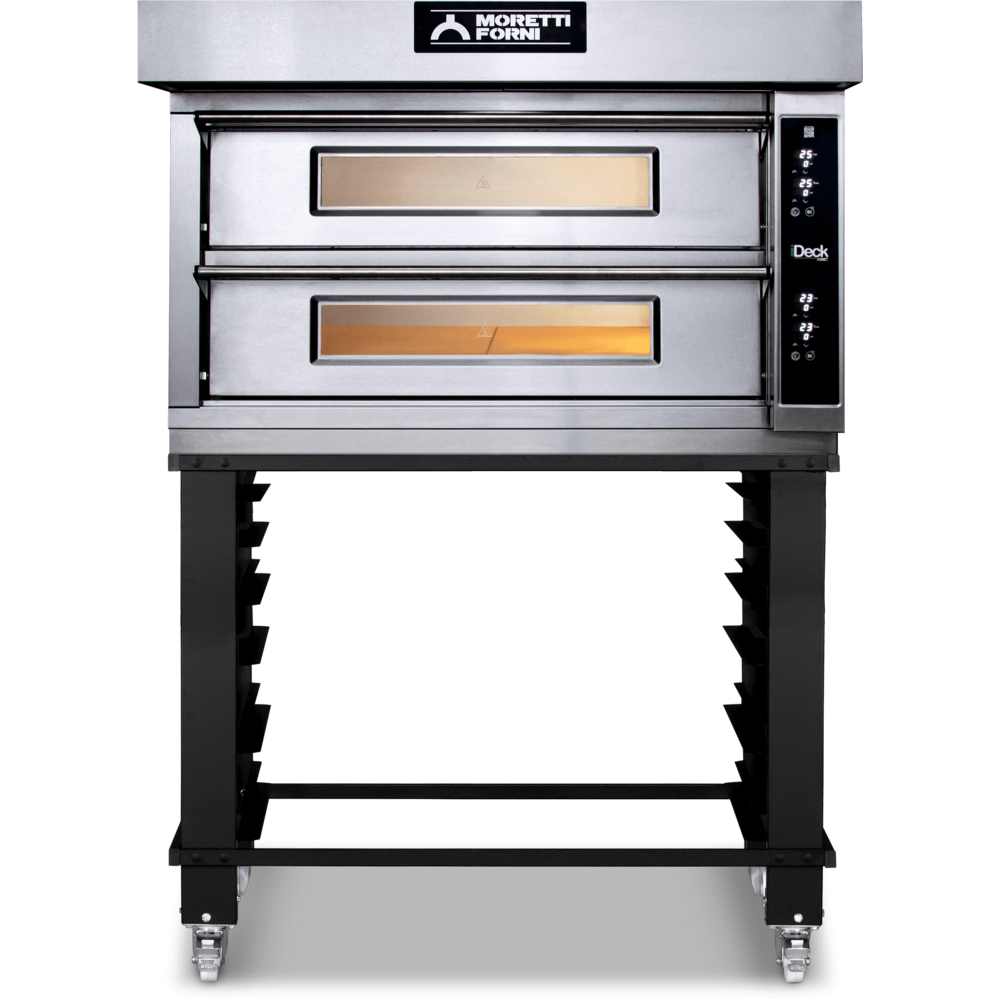

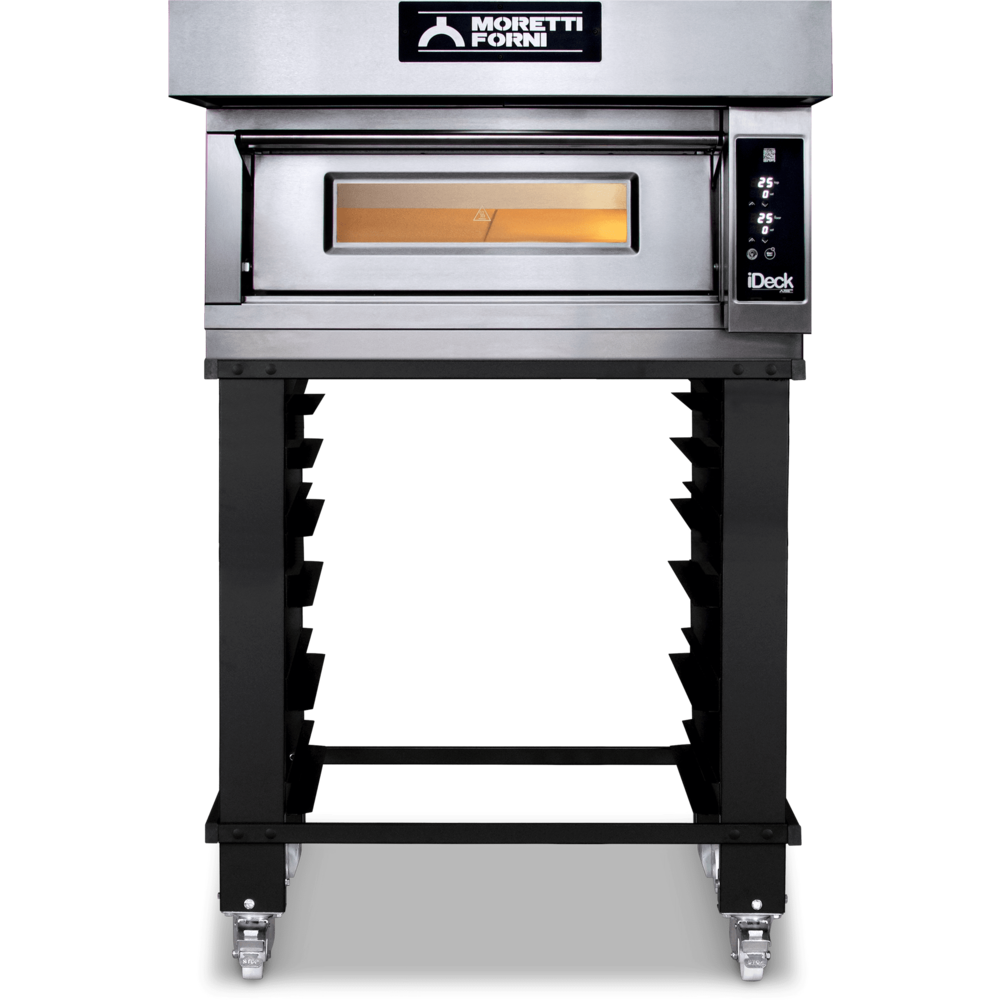

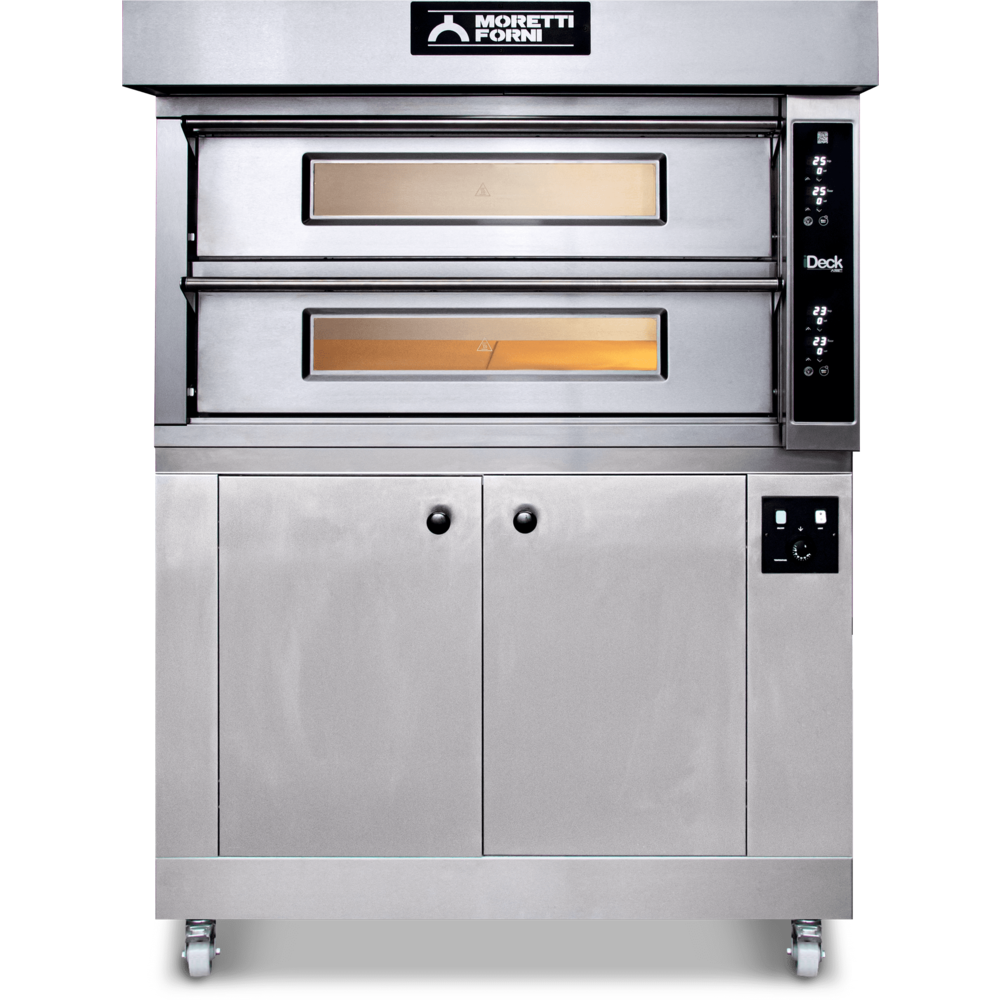

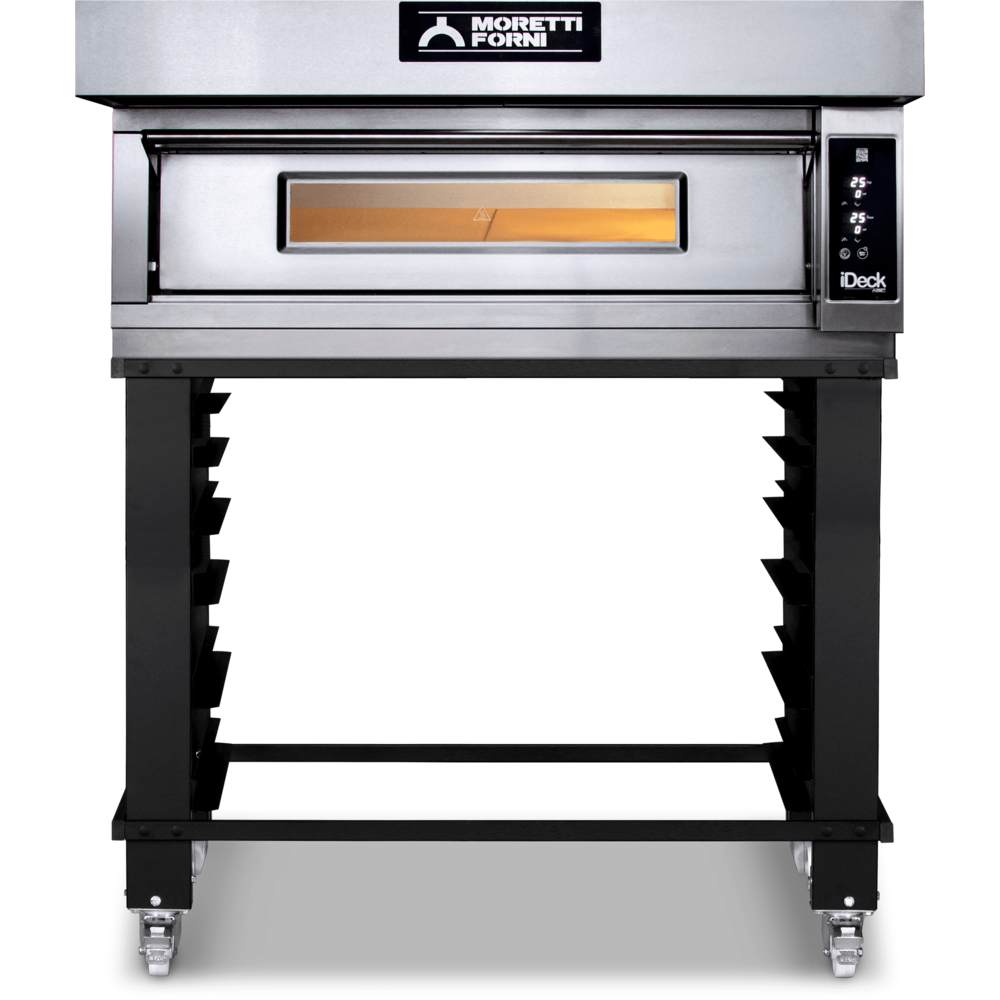

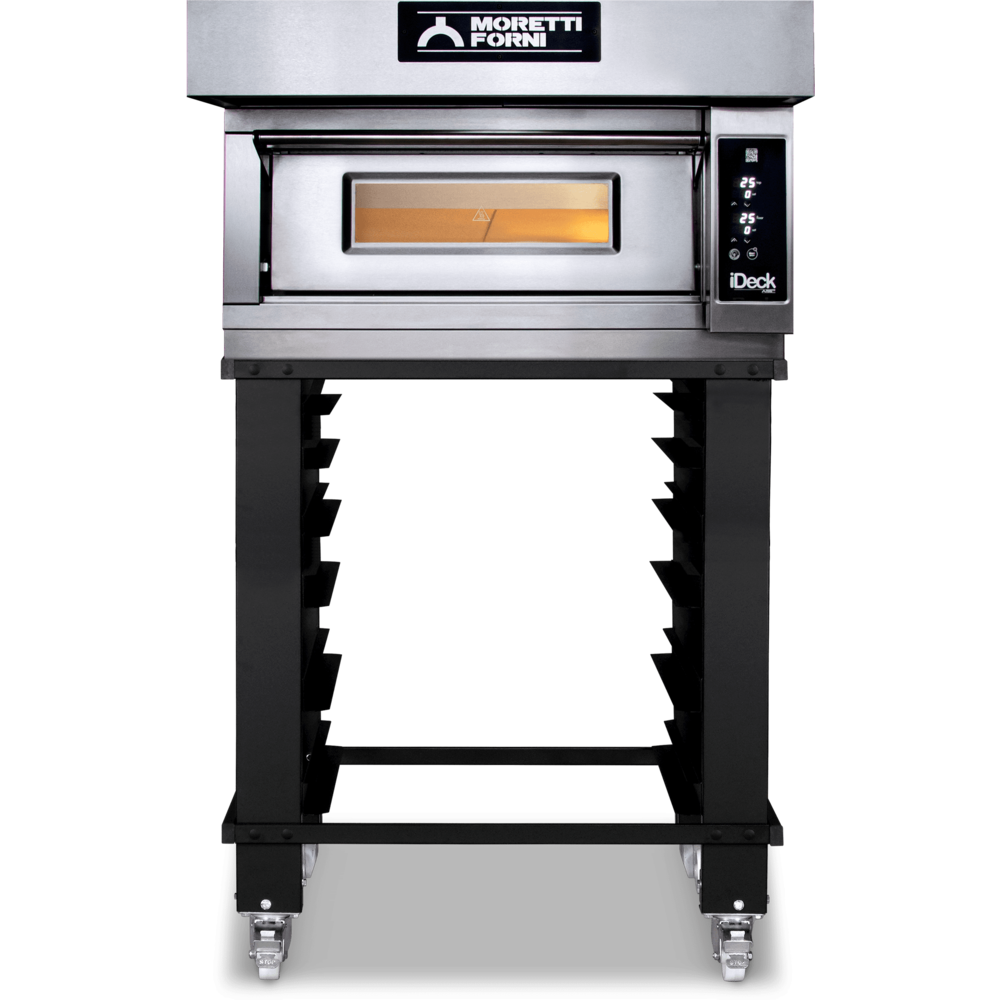

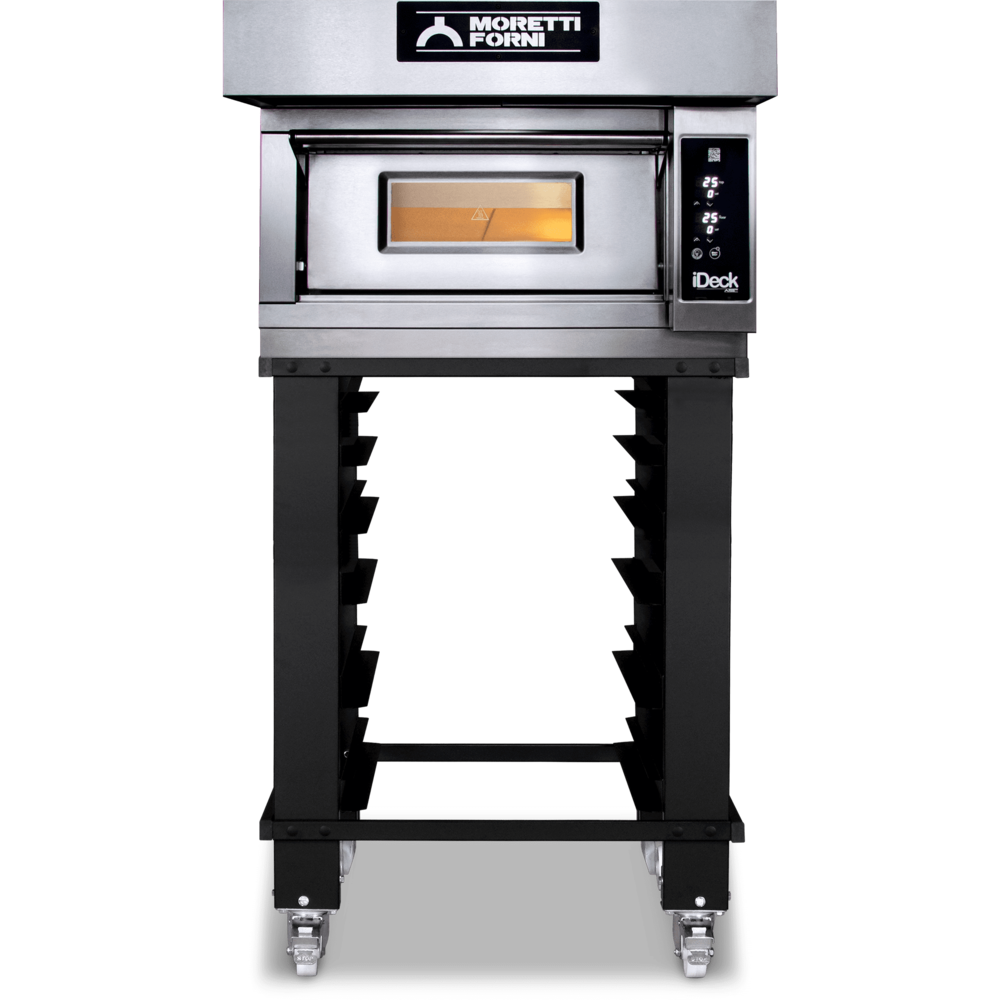

Countertop to Full Station Install on any surface, or build a workstation with optional stand, humidified prover, and hood. Pair with a Serie F convection oven for under 1 sq m total. |
Specifications
All sizes share the same 14 cm (5.5 in) internal chamber height. iD-D (double deck) models double the capacity below. Power is per deck.
| 60.60 | 72.72 | 65.105 | 105.65 | 105.105 | |
| Pizza 12" (30 cm) | 4 | 4 | 6 | 6 | 9 |
| Sheet Pans | 1 | 1 | - | 2 | 4 |
| Internal (W x D) | 61 x 66 cm 24 x 26 in |
72 x 72 cm 28 x 28 in |
66 x 106 cm 26 x 42 in |
106 x 66 cm 42 x 26 in |
106 x 106 cm 42 x 42 in |
| External (W x D x H) | 85 x 99 x 36 cm | 108 x 99 x 36 cm | 92 x 143 x 36 cm | 132 x 103 x 36 cm | 132 x 143 x 36 cm |
| Power / deck | 4.2 kW | 6.0 kW | 7.7 kW | 8.2 kW | 11.6 kW |
| Voltage | 230V/3ph/60Hz 1ph convertible |
208V/3ph/60Hz 1ph convertible |
230V/3ph/60Hz | 230V/3ph/60Hz 1ph w/ kit |
220V/3ph/60Hz |
Pizza capacity based on 12" (30 cm) diameter. 72.72 fits 4 x 14" (35 cm). Sheet pans are 40 x 60 cm (16 x 22 in).
| Max Temperature | 450 C (840 F) | |
| Certifications | CE, cETLus | |
| Origin | Made in Italy |
Downloads
| iDeck Electronic Brochure · PDF | |
| iD 60.60 Spec Sheet · PDF | |
| iD 72.72 Spec Sheet · PDF | |
| iD 65.105 Spec Sheet · PDF | |
| iD 105.65 Spec Sheet · PDF | |
| iD 105.105 Spec Sheet · PDF | |
| All Sizes - CAD Dimensional Files · ZIP |
