SQ6275238

Name

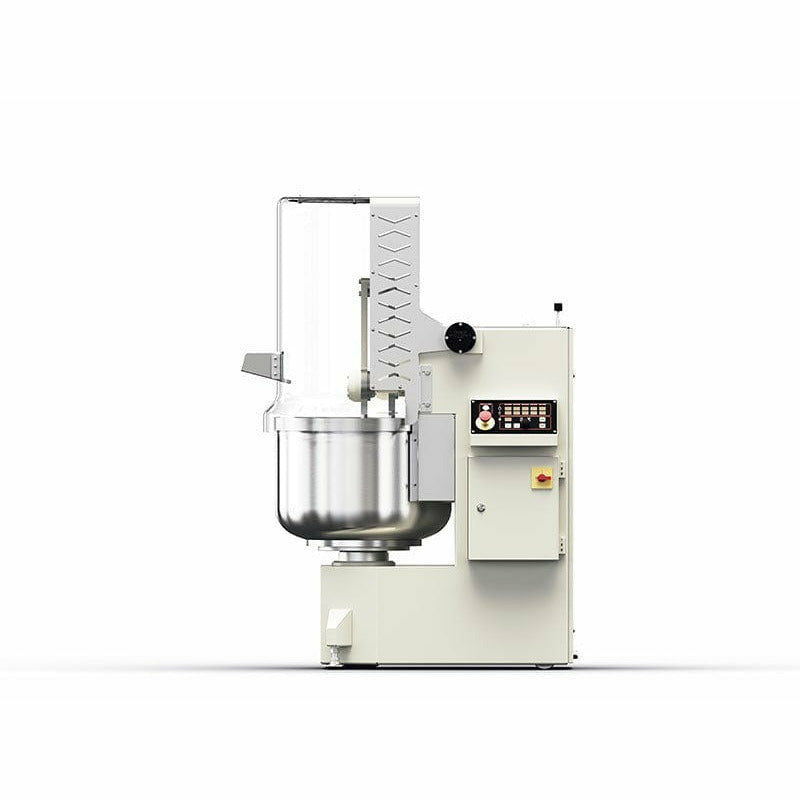

Whilst maintaining the characteristics of the machines, the Italmix range offers the possibility of kneading different types of products, with different consistencies and water content percentages.

Designed to knead both soft dough (90% maximum hydration) and medium-firm (50% minimum hydration), with the Italmix range you will finally find a machine that works with you, and for you. Instinctively simple, exceptionally high-performing.

Features

MACHINE UNIT

Steel structure painted using non-toxic paints with food-grade certification.

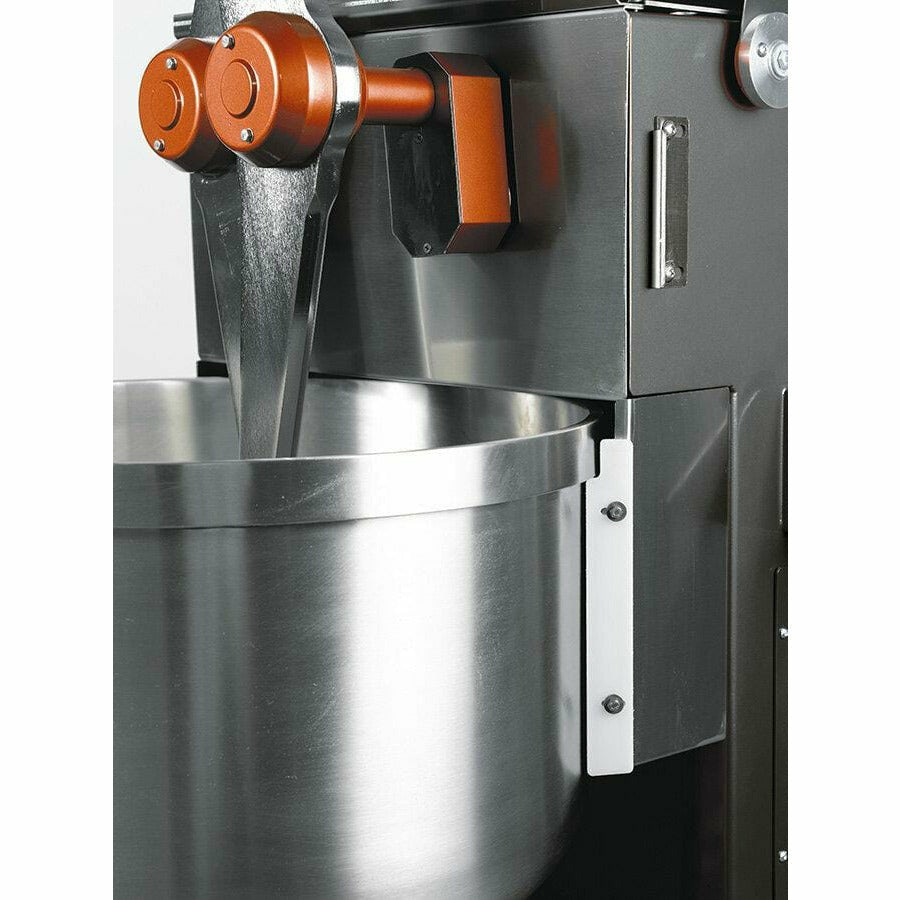

BOWL

Made of outstandingly thick stainless steel with a reinforcement at the base. Available versions: 45, 55, 65, 110, 130 and 150 kg.

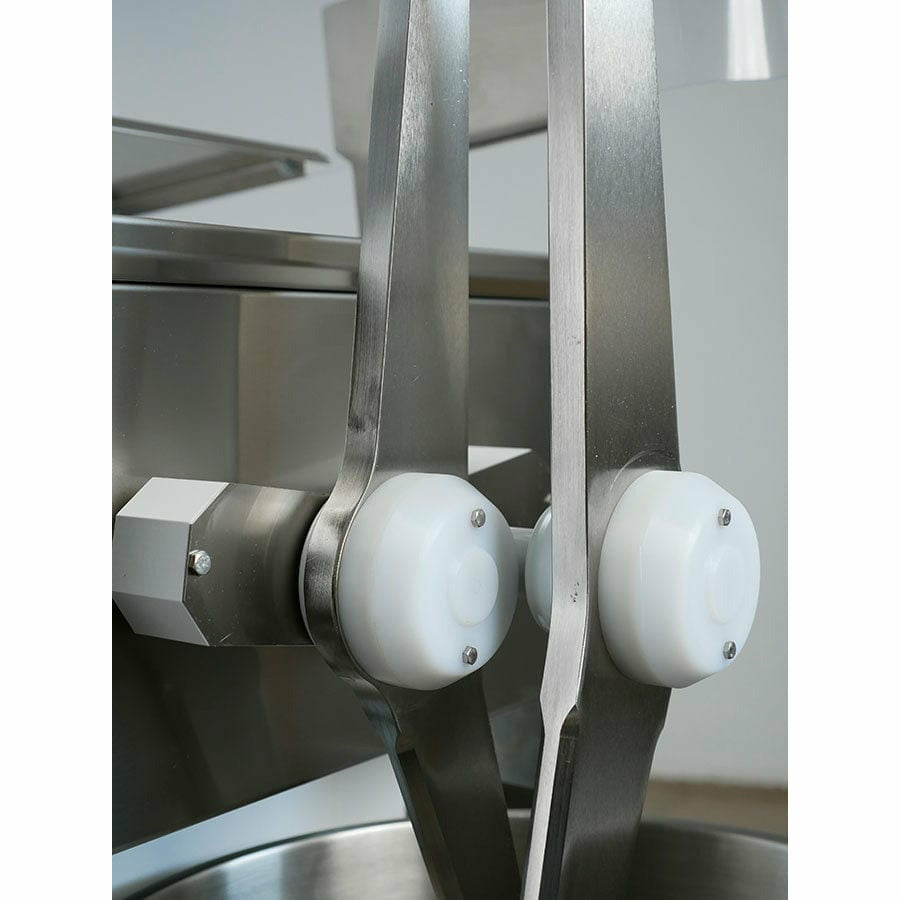

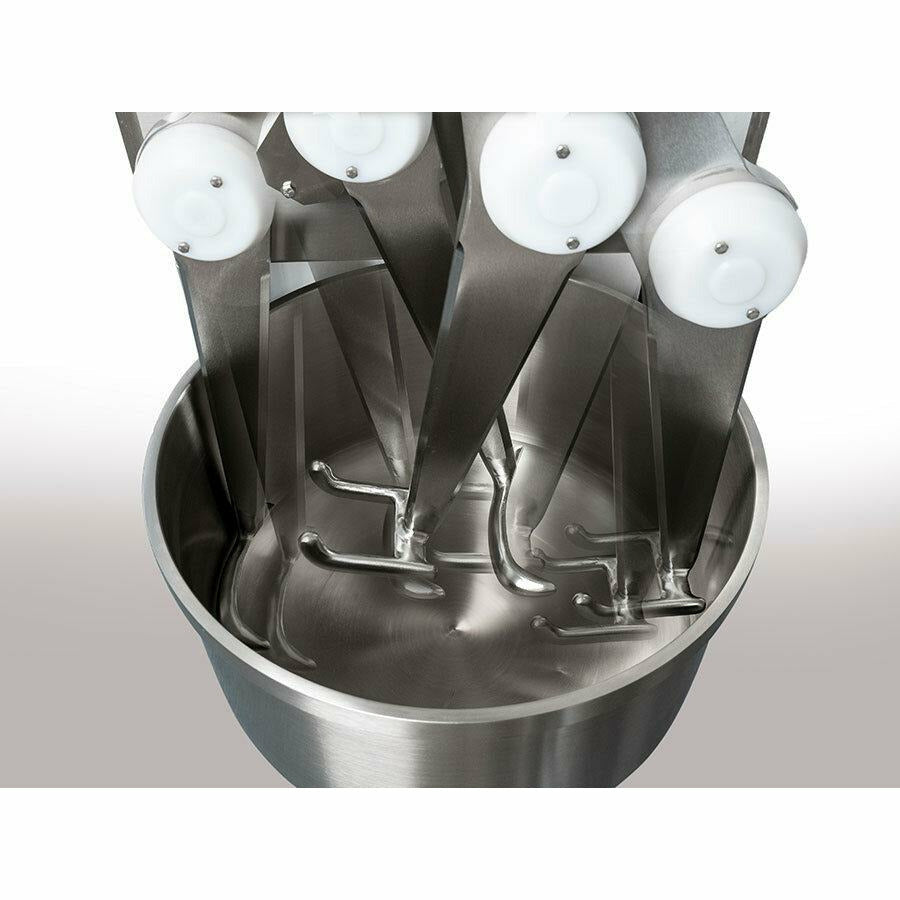

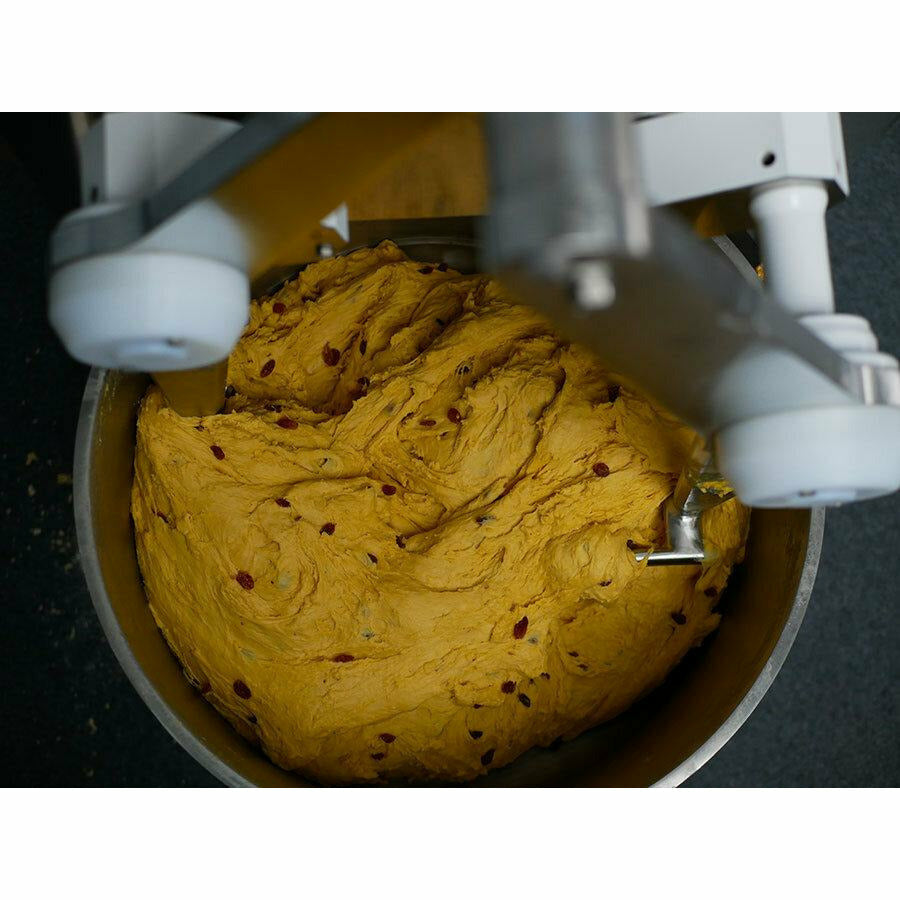

TOOLS

The arms are made of outstandingly thick stainless steel and mounted on self-lubricated ball bearings. The left arm is fitted with a “loop back” to capture the dough, while the right arm is designed to extend the dough.

GEARS

Made of spheroidal cast iron immersed in an oil bath to guarantee silence and durability.

CERTIFICATION

All the machines comply with CE standards and are marked ETL as a proof of product compliance to North American safety standards. Our mixers are designed, manufactured and assembled in ITALY.

HYDRAULIC SHOCK ABSORBER

Rotary shock absorber that increases the safety level of our machines when the bowl protection is raised or lowered by the operator.

MOTOR

Available in 3-phase 2 speed version and a 3-phase/single-phase version with variable speed (INVERTER).

ELECTRICAL CONNECTIONS

Standard supply of all the machines include 400 Volt 50/60 Hz 3 phase connections. On request, they can be supplied with different voltages.

TRANSMISSION

Drive transmission with pulleys and trapezoidal belts to guarantee maximum silence and reliability. The bowl is connected to a gear motor.

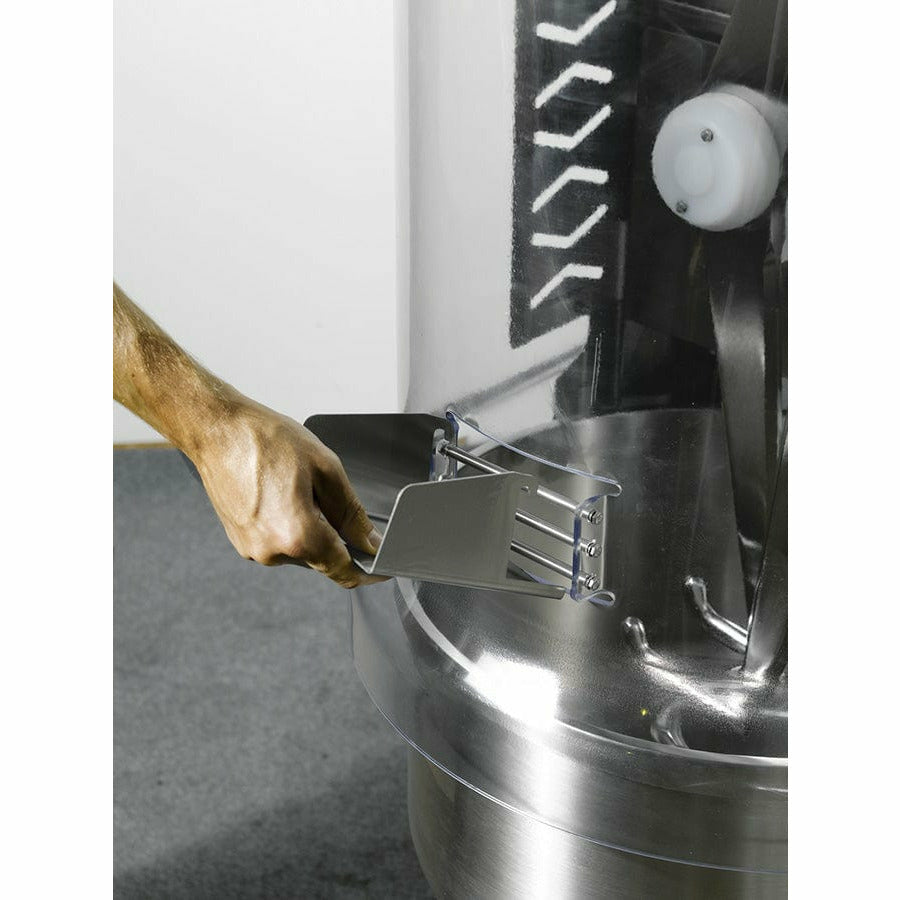

PROTECTION

Anti-shock plexiglass shield. It complies with all health and hygiene regulations (Food processing machinery - Dough mixers - Safety and hygiene requirements EN 453:2000+A1:2009).

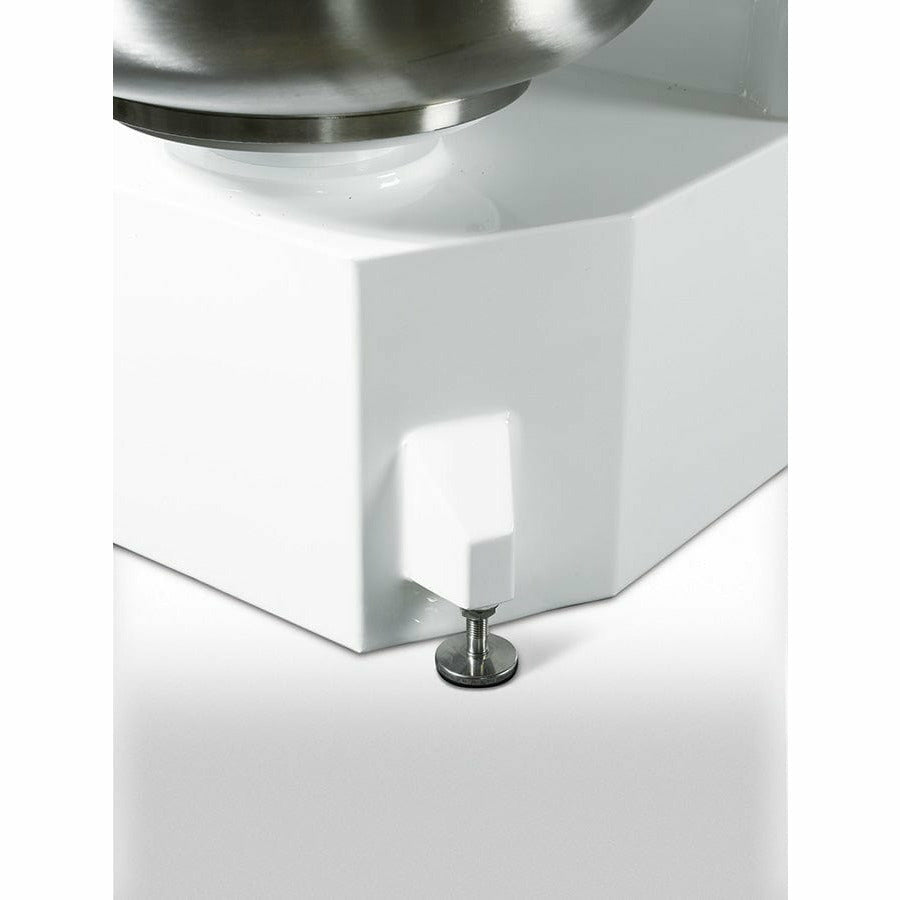

HANDLING

It is equipped with wheels for handling and two stabilizing feet, in order to maintain the required hygienic level in your laboratory. Adjustable front support feet.

OPENABLE CARTERS

Quick coupling / uncoupling system by means quick locks with built-in key, thus reducing cleaning and maintenance times.
