Mastery - Commercial Cold Press Juicer

Mastery represents Zumex’s cold press commercial system for all types of fruit and vegetable juices, leading the way with its crushing efficiency and power, thanks to its shredder discs and its Brushless motor.

It has a series of advantages that improve and facilitate operation. It also has a 11-ton press, which is more compact than any other press of its category to obtain quality juice.

It is robust but functionally designed in order to protect the motors, panels and pressure group from splashes and knocks.

Features

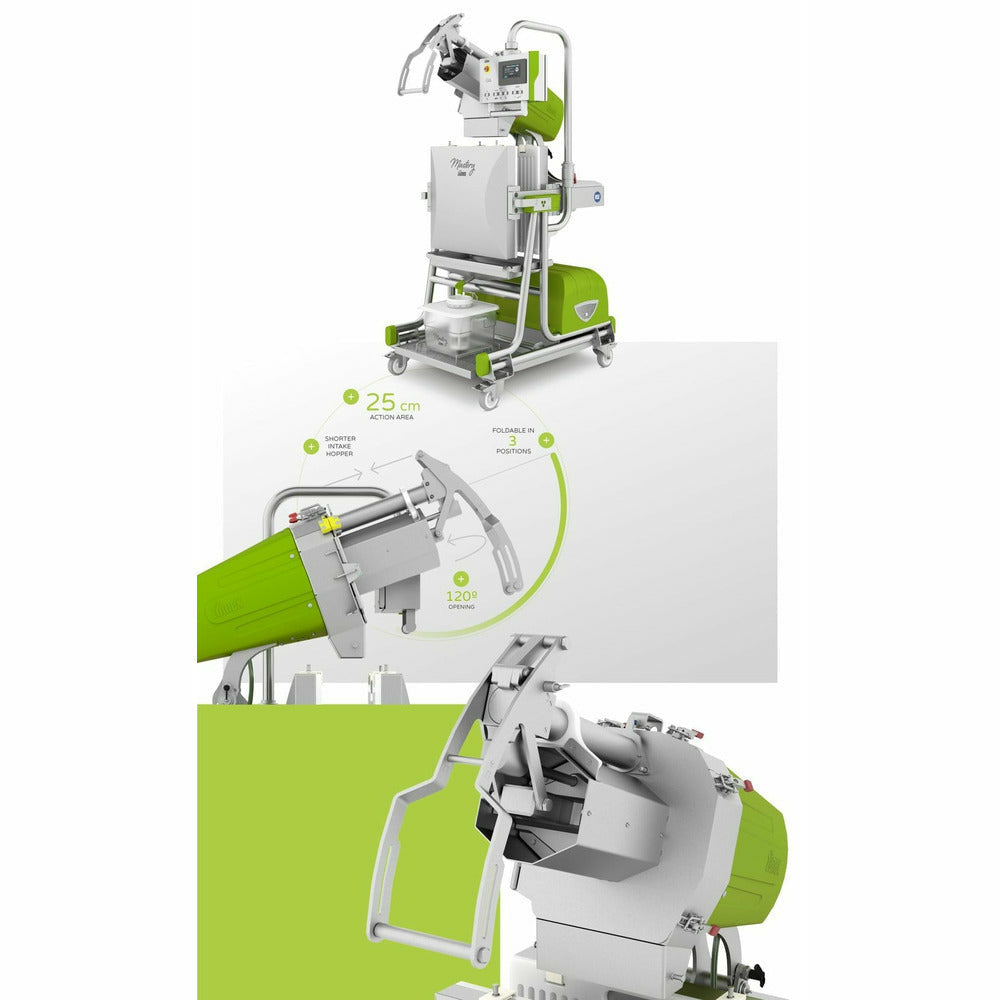

FEED AND CRUSHING SYSTEM

• Shorter, folding, and with built-in pusher - reduces action space, improving access and increasing hygiene, safety and efficiency.

• It speeds up and makes loading easier, providing a greater and effortless push. The greater adjustment between the pusher and high resistance shredder discs fully optimizes the crushing process.

• It has a safety stop system during crushing, when the feeder input is released.

POWER

• Its Brushless motor provides the greatest torque at any speed, adapting its capacity to the different types of fruit and vegetables.  Its consumption is also less than that of other commonly installed motors.

CHOOSE YOUR WORKING METHOD

• Manual or semi-automatic - Use the different programs designed to improve its use, save time and obtain maximum performance.

• Choose from a variety of different programs: soft fruit, hard fruit, green leaf vegetables, mix. Or configure your mode of use by customizing the times and pressing speed and number of cycles.

PRESS

• High production capacity, of up to 30 gal/h or 110 l/h. (Depending on the type of product).

• Its stainless steel press generates 11 tons of force. The cold press racks are designed to achieve a greater yield.

JUICE COLLECTION SYSTEM

• It has a stainless steel tray and a 3 gallon tank.

• The tank includes a filter to eliminate possible undesirable particles that might get into the juice and to avoid excessive contact with the air.

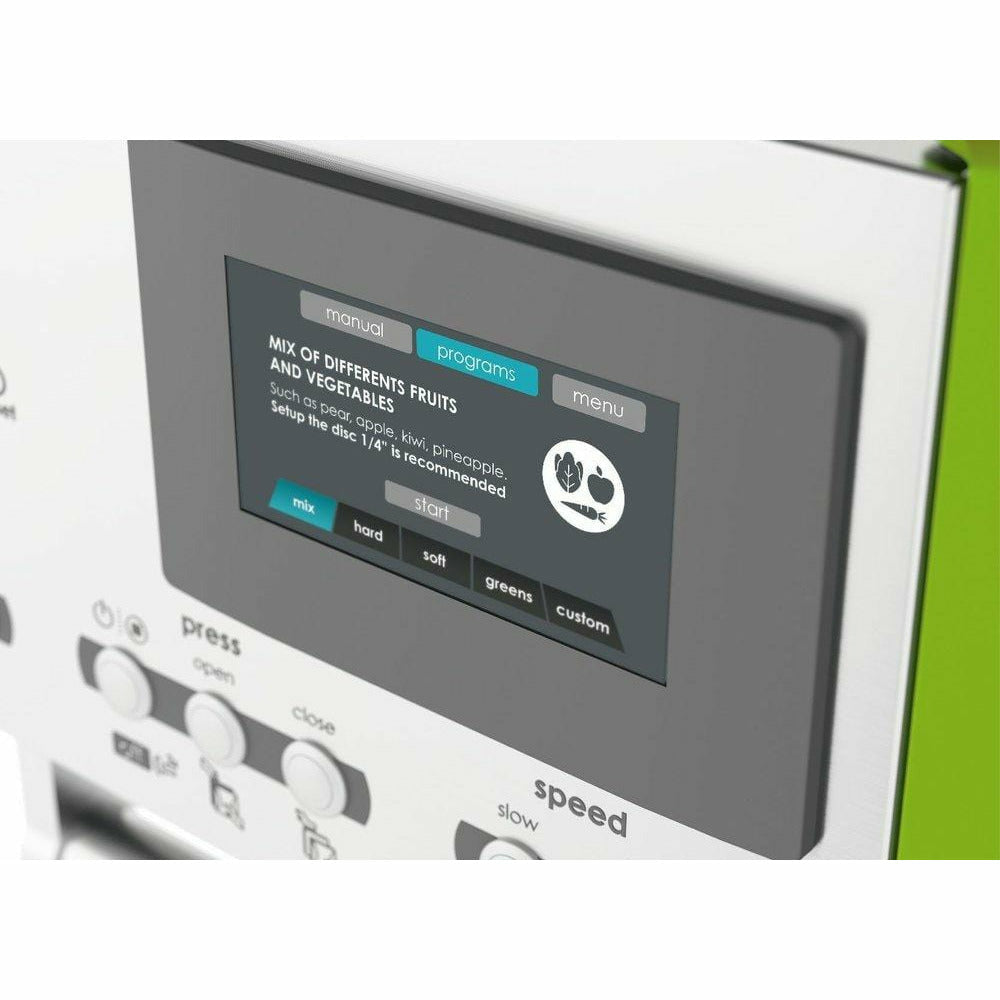

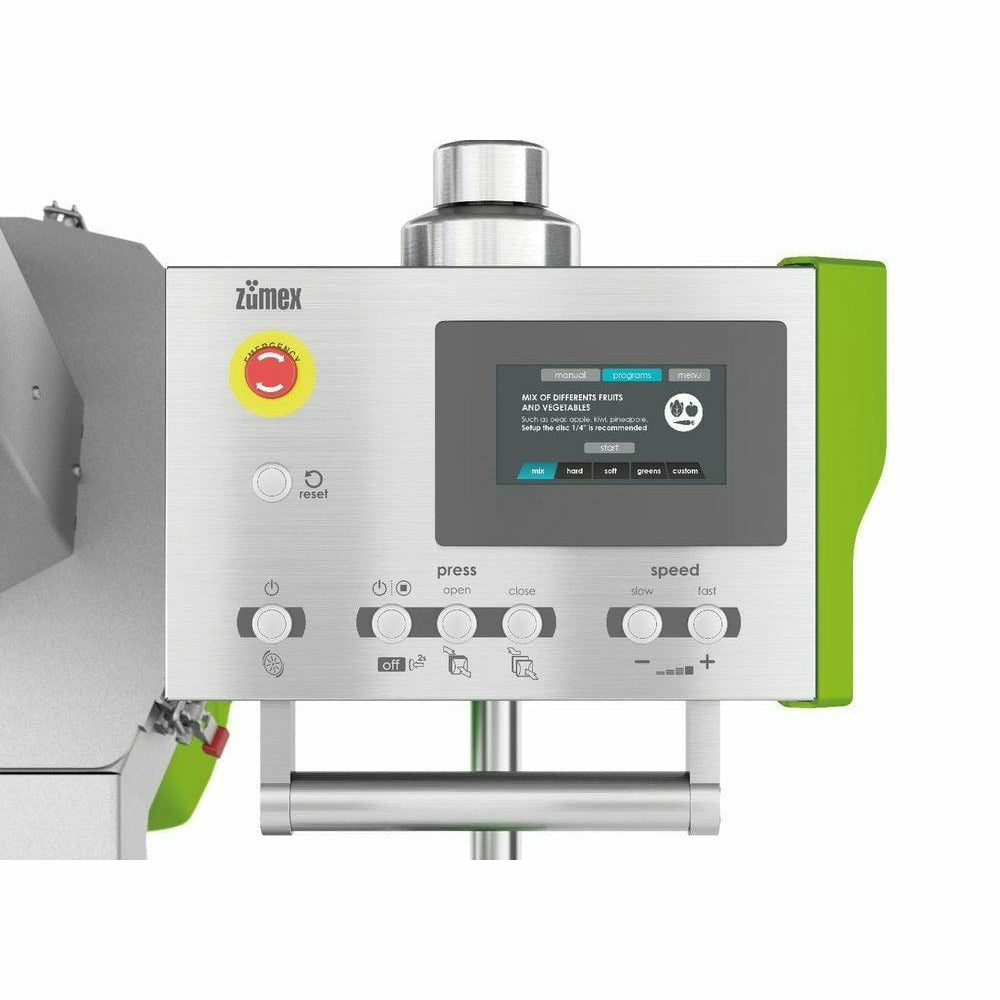

CENTRALIZED CONTROL PANEL

• Real time control of all parameters from the operation area, crushing and pressing speed, pressing times and cycles through the control panel with 4.3” full-colour
  touch screen.

 BUILT-IN SAFETY

• The Mastery includes pusher presence and door opening sensors that make the cutting disc and the crusher motor of the machine stop automatically.

• It also has overload protection and an emergency stop button that deactivates all the systems if needed.
